江蘇WANSHIDA HYDRAULIC MACHINERY CO.、株式会社
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | WANSHIDA |
| 証明: | CE and ISO9001 |
| モデル番号: | Q43L-8000L |
| 最小注文数量: | 1セット |
| 価格: | 交渉可能 |
| パッケージの詳細: | 耐航性のある梱包 |
| 受渡し時間: | 30日 |
| 支払条件: | T/T |
| 供給の能力: | 10セット/月 |
| モデル: | Q43L-8000L | 切削抵抗(kN): | 8000 |
|---|---|---|---|
| 荷室寸法(mm): | 8000x1950x900 | 刃長(mm): | 2000年 |
| 油冷システム: | 空冷システム | 油圧システム圧力: | 25MPa |
| 切断速度(回/分): | 2-3 | 電力(kW): | 270 |

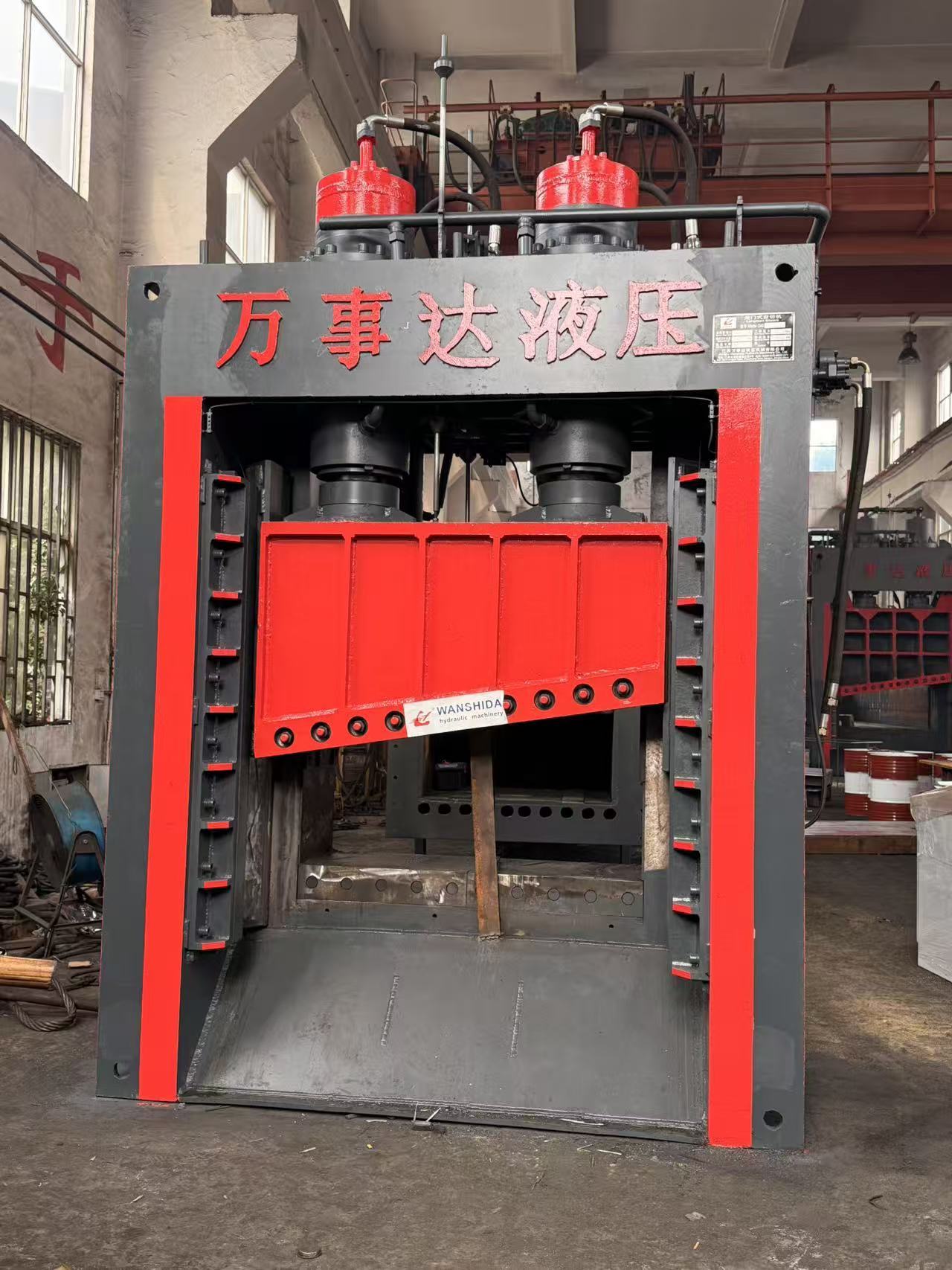

Heavy Duty Hydraulic Gantry Shear 800 Ton With 8000 Mm Feeding Length
And 25 MPa Pressure For Scrap Steel Processing
The hydraulic gantry shear (Q43L-8000L) is a heavy-duty industrial machine designed specifically for processing large volumes of heavy scrap metal. It is primarily used for cutting steel plates, rebar, structural steel, and mixed heavy scrap into manageable sizes for transportation and furnace charging.
This equipment is typically installed in large-scale recycling plants, steel mills, and shipbreaking facilities where continuous operation and high cutting capacity are required. Unlike smaller shear machines, this gantry shear is engineered for long-term, high-load operation, making it a core piece of equipment in modern scrap processing lines.
| Item | Specification |
|---|---|
| Model | Q43L-8000L |
| Cutting Force | 8000 kN |
| Feeding Chamber | 8000 × 1950 × 900 mm |
| Blade Length | 2000 mm |
| Hydraulic Pressure | 25 MPa |
| Cutting Speed | 2–3 times/min |
| Power | 270 kW |
| Cooling System | Air Cooling |
| Operation | PLC Automatic |
| Weight | 92000 kg |
In the recycling industry, processing mixed steel scrap is often inefficient due to irregular shapes and inconsistent sizes. A gantry shear helps improve workflow by enabling continuous and stable cutting.
In steel plants, handling structural steel and rebar can be challenging, especially when dealing with oversized materials. The long feeding chamber allows these materials to be processed more smoothly without frequent repositioning.
In the shipbreaking industry, thick steel plates require strong and reliable cutting performance. The high cutting force ensures consistent results even under heavy working conditions.
In construction and demolition projects, scrap materials are often irregular and difficult to manage. A stable hydraulic system allows uniform cutting and improves overall processing efficiency.
Heavy Duty Cutting Capacity
The 8000 kN cutting force is designed to handle thick steel plates and dense structural materials, ensuring efficient processing without repeated cutting cycles
Extended Feeding Chamber
The 8000 mm feeding length allows long materials to be processed directly, reducing the need for pre-cutting and improving workflow efficiency
High-Pressure Hydraulic System
The 25 MPa hydraulic system ensures consistent pressure output, which is essential for maintaining stable cutting performance under heavy loads
Automatic PLC Control
The PLC system enables automated operation, reducing manual intervention and improving overall production efficiency
Air Cooling System
The air cooling design ensures stable operation during long working hours and reduces maintenance complexity
The machine’s performance is supported by key technical parameters rather than general descriptions
8000 kN cutting force enables processing of heavy and thick scrap materials
8000 mm feeding chamber allows direct input of long materials without additional handling
25 MPa hydraulic pressure ensures stable cutting force even during continuous operation
270 kW motor power provides sufficient energy for high-load industrial applications
2–3 cuts per minute ensures consistent throughput for large-scale processing
These parameters directly translate into improved productivity, reduced labor cost, and lower operational risk
Scrap processing companies often face the following challenges
Difficulty handling oversized and irregular scrap materials
Low cutting efficiency when processing thick steel
High labor costs due to manual handling and repositioning
Frequent equipment downtime caused by unstable systems
This gantry shear addresses these issues through
High cutting force for heavy materials
Continuous feeding structure for long scrap
Stable hydraulic system for consistent performance
Automatic control system to reduce labor dependency
What materials can this gantry shear process
It is suitable for steel plates, rebar, structural steel, and mixed heavy scrap
What is the expected production capacity
Capacity depends on material type and feeding conditions, but the machine is designed for continuous industrial operation
Can it process long scrap materials
Yes, the 8000 mm feeding chamber is specifically designed for long material handling
Is the machine suitable for heavy-duty operation
Yes, it is built for continuous high-load industrial use
