江蘇WANSHIDA HYDRAULIC MACHINERY CO.、株式会社
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | WANSHIDA |
| 証明: | CE and ISO9001 |
| モデル番号: | Y82-200L |
| 最小注文数量: | 1セット |
| 価格: | 交渉可能 |
| パッケージの詳細: | 耐航性のある梱包 |
| 受渡し時間: | 30日 |
| 支払条件: | T/T |
| 供給の能力: | 10セット/月 |
| 名前: | 縦の梱包機 | モデル: | Y82-200L |
|---|---|---|---|
| ベール重量: | 500-800kg | プレスルームのサイズ: | 1750×950×2000mm |
| 授乳室の広さ: | 1750×750mm | ベールサイズ: | 1800×1000×(500-1200)mm |
| プレスフォース: | 200tons | モーター出力: | 30kW |

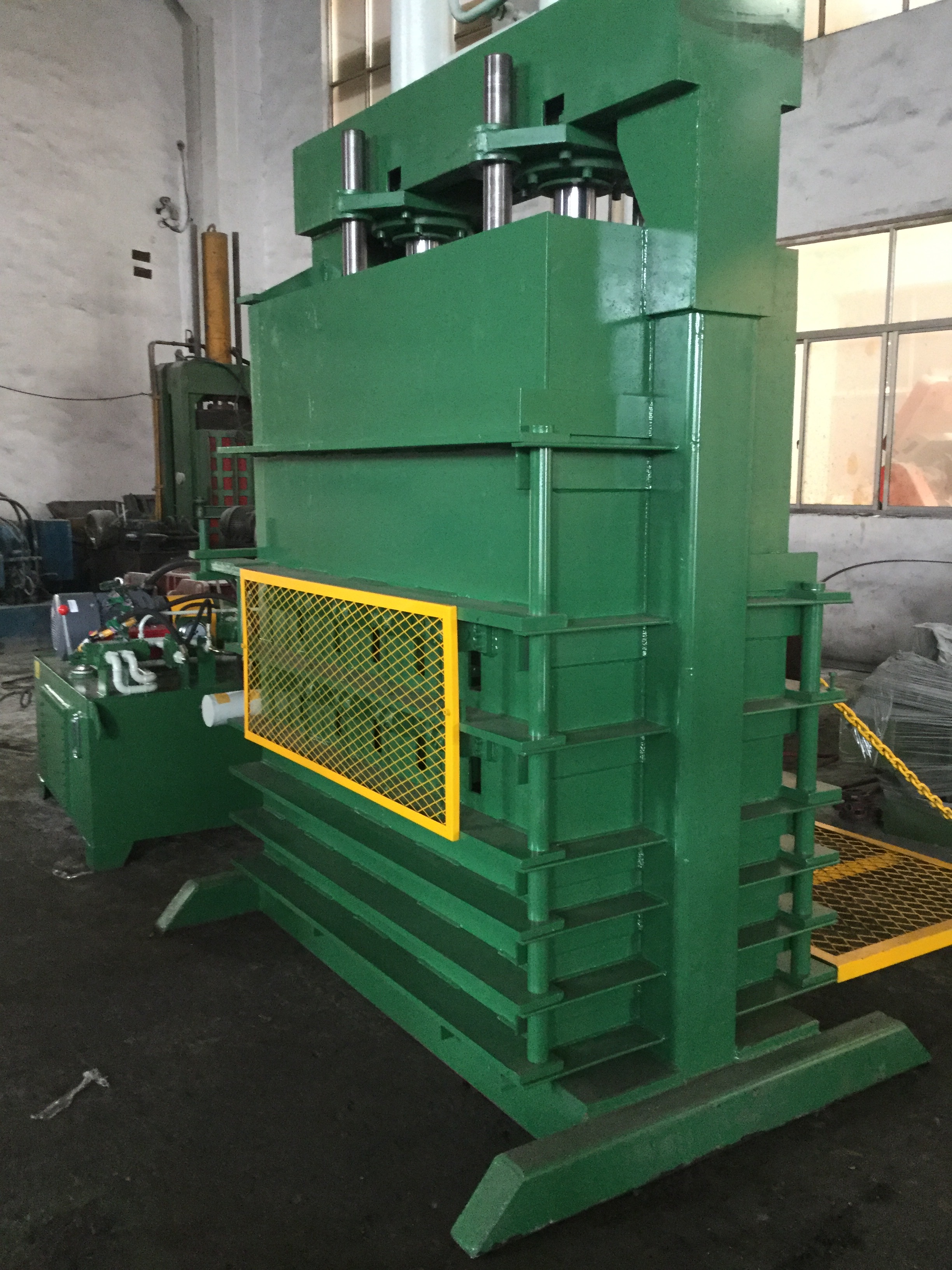

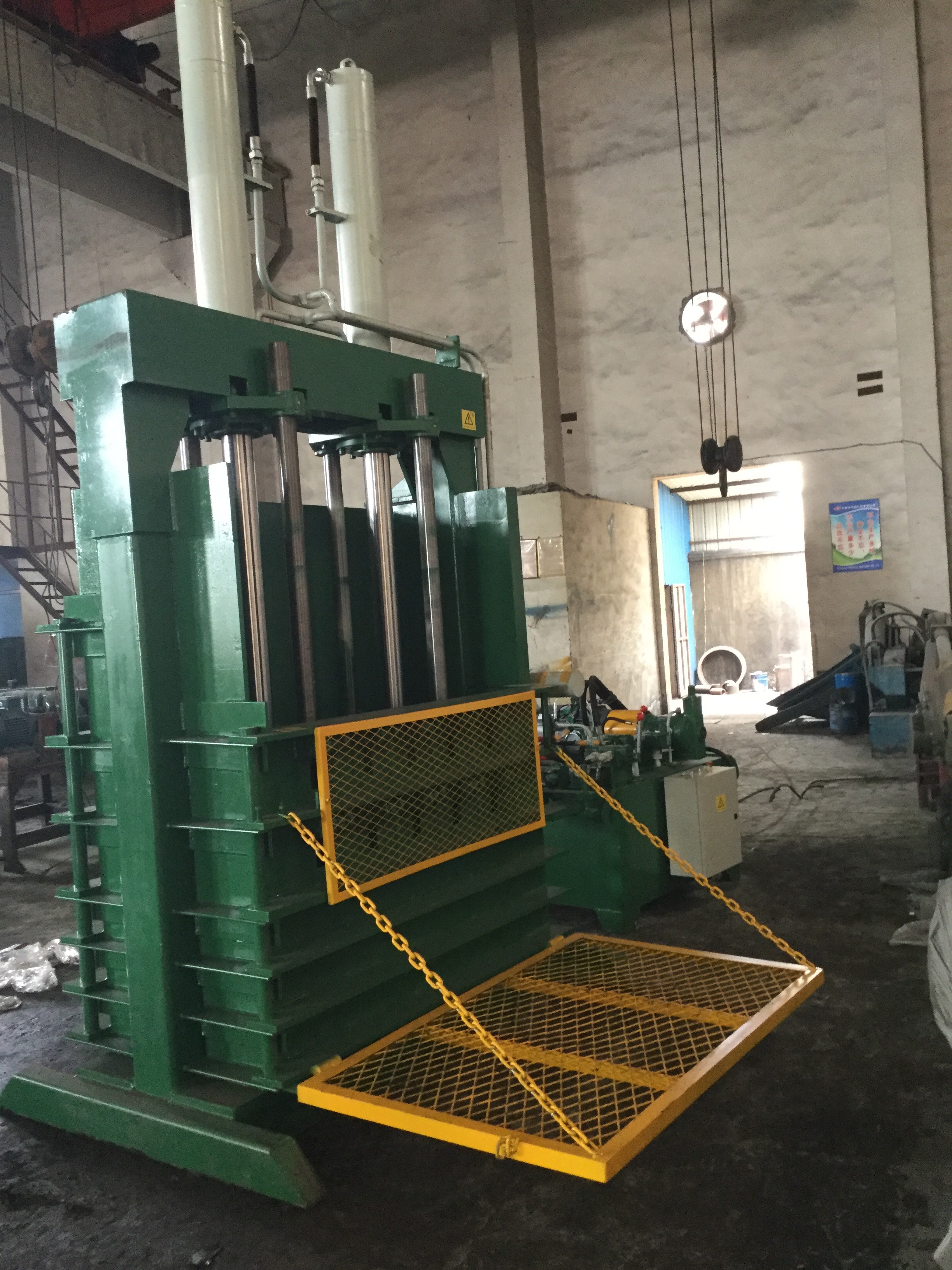

Vertical Baler for Cardboard & Plastic Recycling, 200 Ton Press Force with 30kW Motor
Product Overview
The Y82-200L Vertical Baler is a heavy-duty recycling solution designed for compressing cardboard, cartons, plastic film, PET bottles, HDPE, and waste paper. With a 200-ton hydraulic pressing force, this machine efficiently reduces material volume, helping recycling companies lower transportation and storage costs.
The Y82-200L vertical baler is widely used for:
Cardboard and cartons
Plastic film and plastic bottles
PET / HDPE materials
Waste paper and newspapers
It is especially suitable for manual feeding operations, recycling stations, warehouses, and industrial recycling facilities.
| Item | Specification |
|---|---|
| Model | Y82-200L |
| Press Force | 200 Tons |
| Bale Weight | 500–800 kg |
| Press Room Size | 1750 × 950 × 2000 mm |
| Feeding Opening | 1750 × 750 mm |
| Bale Size | 1800 × 1000 × (500–1200) mm |
| Motor Power | 30 kW |
| Machine Dimensions | 2200 × 2600 × 3600 mm |
| Operation Mode | Manual / Semi-automatic (optional) |
High Compression Efficiency – 200-ton force ensures dense and stable bales
Wide Material Compatibility – ideal for paper and plastic recycling
Large Chamber Design – improves loading efficiency
Space-Saving Vertical Structure – suitable for indoor installations
Reliable Hydraulic System – stable operation and low maintenance cost
Q: Can this baler handle PET bottles and plastic film?
A: Yes. It is specifically designed for PET, HDPE, plastic film, and paper materials.
Q: Can the bale height be adjusted?
A: Yes. Bale height can be adjusted from 500 to 1200 mm based on requirements.
Q: Can the voltage be customized?
A: Yes. The machine can be configured according to local electrical standards.
1-year warranty with lifetime technical support
Installation guidance and operator training
Remote engineering support for long-term stable operation
