江蘇WANSHIDA HYDRAULIC MACHINERY CO.、株式会社
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Wanshida |
| 証明: | CE, ISO9001 |
| モデル番号: | Q43-2000 |
| 最小注文数量: | 1セット |
| 価格: | 交渉可能 |
| パッケージの詳細: | 耐航性のある梱包 |
| 受渡し時間: | 25～35日 |
| 支払条件: | T/T、L/C |
| 供給の能力: | 30セット/月 |
| PLCブランド: | 三菱またはシーメンス | 使用法: | 金属切削 |
|---|---|---|---|
| 最大オペレーション: | 380mm | 状態: | 新しい |
| 刃の長さ: | 800mm | 力: | 22KW |
| スクラップサイズ: | 65×65 Φ75(mm) | 毎分頻度: | 12～20(回) |

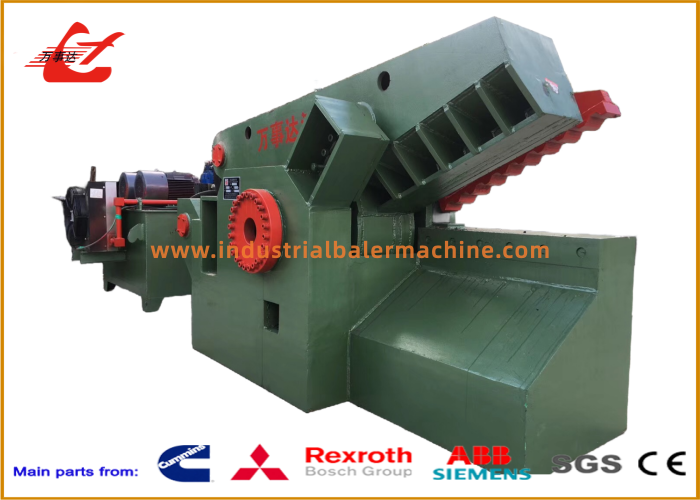

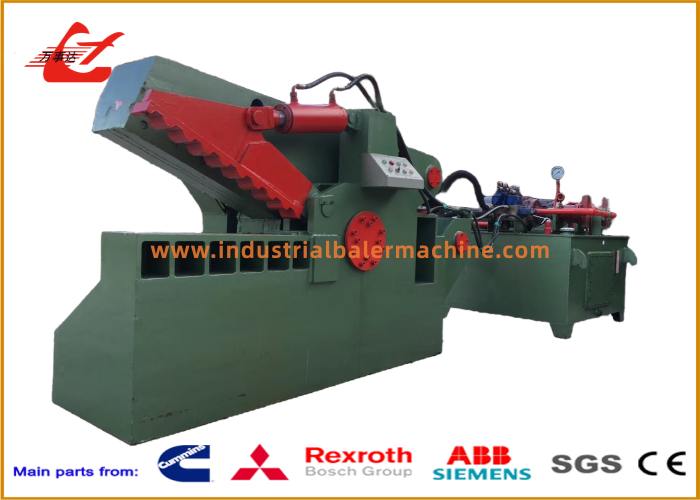

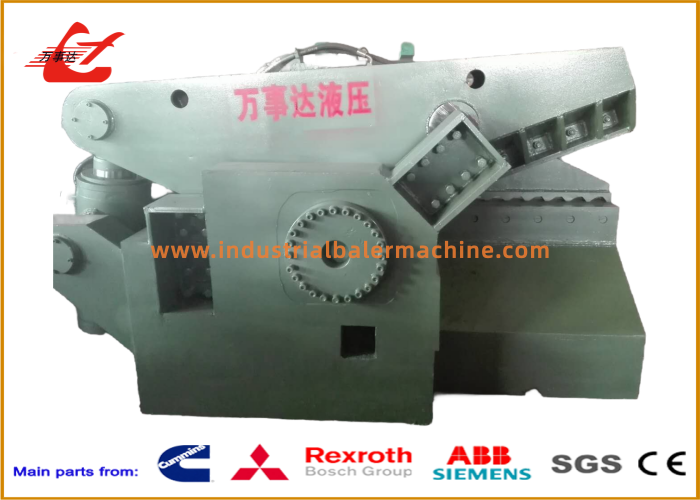

The Q43-2000 Alligator Shear is designed for small and medium scrap processing businesses that need a practical, durable, and cost-effective cutting solution. Many recycling yards face challenges such as oversized scrap that is difficult to transport, low cutting efficiency, and high labor dependency.
This machine helps solve these problems by delivering stable hydraulic cutting force, consistent performance, and flexible operation modes. It is widely used for processing steel bars, pipes, profiles, and non-ferrous metals into smaller, manageable sizes for transportation or further melting.
With its compact structure and relatively low power requirement, it is especially suitable for workshops with limited space or unstable power supply conditions.
High 2000 kN cutting force ensures efficient processing of medium-thickness scrap
800 mm blade length provides a good balance between capacity and energy consumption
380 mm blade opening allows handling of various scrap shapes and sizes
12–20 cuts per minute improves working efficiency and reduces labor cost
Manual or PLC semi-automatic operation available for different budget levels
Stable hydraulic system ensures smooth operation and long service life
Compact design reduces installation space and civil work requirements
Low power consumption (22 kW) suitable for developing markets
This machine is suitable for a wide range of materials and industries:
Scrap metal recycling yards processing mixed steel scrap
Workshops handling rebar, steel pipes, and structural steel
Non-ferrous recycling facilities dealing with aluminum and copper
Collection stations requiring size reduction before transportation
Typical materials include rebar, angle steel, round steel, pipes, aluminum profiles, and copper cables.
| Item | Parameter |
|---|---|
| Model | Q43-2000 |
| Largest Shear Force | 2000 kN |
| Holding Force | 25 kN |
| Blade Opening | 380 mm |
| Blade Length | 800 mm |
| Cutting Frequency | 12–20 times/min |
| Max Scrap Size | 65 × 65 mm / Φ75 mm |
| Motor Power | 22 kW |
| Operation Mode | Manual feeding, Manual or PLC semi-automatic |
For many buyers, the key concern is not only performance but also long-term usability. The Q43-2000 is a mature and proven design that has been widely used in different markets. It offers a good balance between investment cost and daily output, making it ideal for businesses that want stable operation without over-investing in large equipment.
Compared with manual cutting, it significantly improves efficiency while maintaining simple operation, which is important for areas with limited skilled labor.
We understand that working conditions vary from country to country. This machine can be customized based on your requirements:
Voltage and frequency (e.g., 380V / 415V / 440V / 50Hz / 60Hz)
Diesel engine drive for areas without stable electricity
PLC system upgrade for higher automation
Blade material and configuration adjustment for specific scrap types
With more than 40 years of experience in hydraulic machinery manufacturing, we provide reliable and practical solutions for global customers.
All machines are produced under strict quality control and comply with CE and ISO9001 standards. Our engineering team supports customization, and we provide long-term technical support and spare parts supply to ensure stable operation.
Q1: What materials can this machine process?
It is suitable for steel bars, rebar, pipes, angle steel, aluminum, copper, and other medium and light scrap metals.
Q2: Can it handle heavy scrap?
This model is mainly designed for medium-size materials. For thicker or larger scrap, a higher tonnage machine is recommended.
Q3: Is PLC control necessary?
No. Manual operation is more economical. PLC semi-automatic operation is recommended if you want higher efficiency and reduced labor.
Q4: What is the installation requirement?
The machine only needs a simple foundation and can be installed quickly.
Q5: Is maintenance complicated?
No. The structure is simple, and key components are easy to access. Spare parts are standardized and easy to replace.
Q6: Can you match our local power supply?
Yes, we can customize the machine according to your local voltage and frequency requirements.
